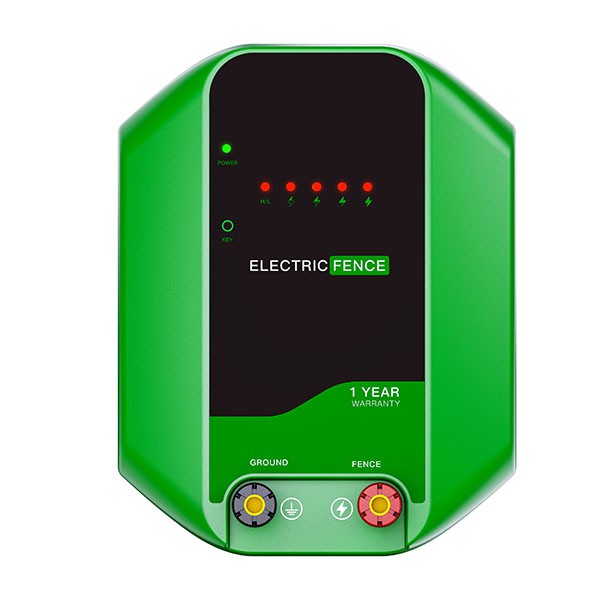

Pasture energy controller
Model: TD-XM1E
The 4 red LEDs are pulse output intensity indicators. The more LEDs are lit, the stronger the output.
The controller has built-in output intensity detection to detect changes in output energy in real time.
Key operation: 1. Set the pulse output amplitude; 2. Set the pulse output period.
Specifications
| Size | 180*140*54mm, |
|---|---|
| Output energy | maximum 2.3J. |
| Output amplitude | maximum 10kV. |
| Stored energy | 3.2J |
| Power supply mode | Adapter can be used (voltage input range 110VAC-240VAC, DC: 12V2A); DC12V battery; solar panel power supply. |
| Host power consumption | maximum 4.3W |
Description
The green LED is the power indicator light.The LED (H/L) indicator light indicates the output amplitude level.
The 4 red LEDs are pulse output intensity indicators. The more LEDs are lit, the stronger the output.
The controller has built-in output intensity detection to detect changes in output energy in real time.
Key operation: 1. Set the pulse output amplitude; 2. Set the pulse output period.
